The ADC1 is a two-channel, 24-bit, 192-kHz Analog-to-Digital audio converter. As with the companion DAC1, the ADC1 pushes the limits of conversion technology and yet maintains an affordable price point.
Digital audio created by the ADC1 provides a stunningly faithful recreation of the input signal. The distortion free output is so pristine you can now record detail which was previously masked by jitter induced artifacts and distortion. Without exceptional recording capability, efforts made with equipment, microphone, mic-placement, and venue selections will be compromised.
Main output sample rates are 44.1, 48, 88.2, 96, 176.4, and 192kHz, with a word length of 24-bits. The main output signal is simultaneously on XLR, BNC, and 192-kHz capable Toslink connectors. Output signal format choices include: AES, S/PDIF and ADAT.
A simultaneous secondary output provides 44.1 or 48-kHz output with a switch selectable 16 or 24-bit word length resolution. This output is intended for safety backup recordings. The secondary output has the same quality as and is fully independent from the Main outputs in both sample rate and word length.
The reference input features auto-detection and lock to a source format of either AES, S/PDIF, word clock, or super-clock. The ADC1 has its own internal, international, toroidal power supply.
The ADC1 is essential equipment for mastering, home recording studios, location recording, and broadcast facilities - any place that requires uncolored recording capability.
Features:
Converter
¡ETotal Isolation of Conversion Clock
¡EReference Digital-In Jitter will not Degrade conversion Performance
¡EReference Locks to AES, S/PDIF, WC, or Super-clock
¡EJitter-Free Performance in all Modes
¡E24-bit 192kHz Conversion
¡ETHD+N < -110 dB (0.0003%)
¡EDynamic Range > 120 dB A-Weighted
¡E44.1, 48, 88.2, 96, 176.4, and 192kHz at 24-bits (Main Output)
¡E44.1 or 48 kHz, 16 or 24-bit (Secondary Output)
¡E9-Segment, Dual Range LED Meter, with Peak Hold
Power and Chassis
¡E BNC to RCA adapters included
¡EInternal Toroidal Power Transformer
¡EIEC Connector with International V Select
¡EWide AC-Voltage Operating Range
¡EEMI and RFI filtering
¡E1 RU high, half-rack wide
¡ERack mount kit available
¡EWill also mount beside the DAC1 or another or ADC1

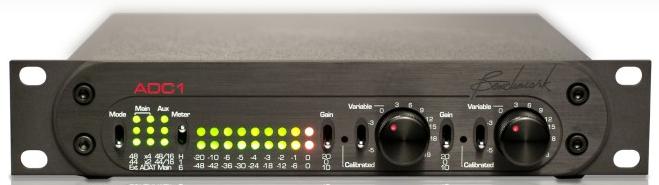

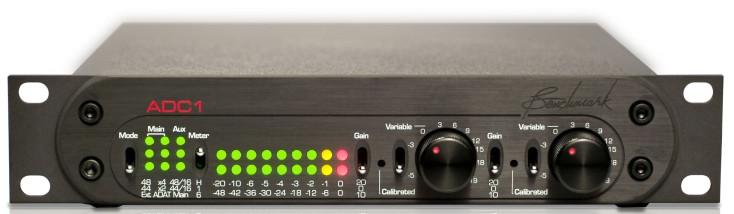

Front Panel View

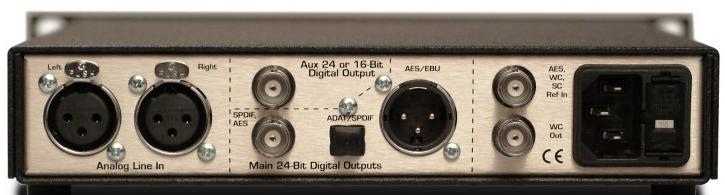

Rear Panel View
